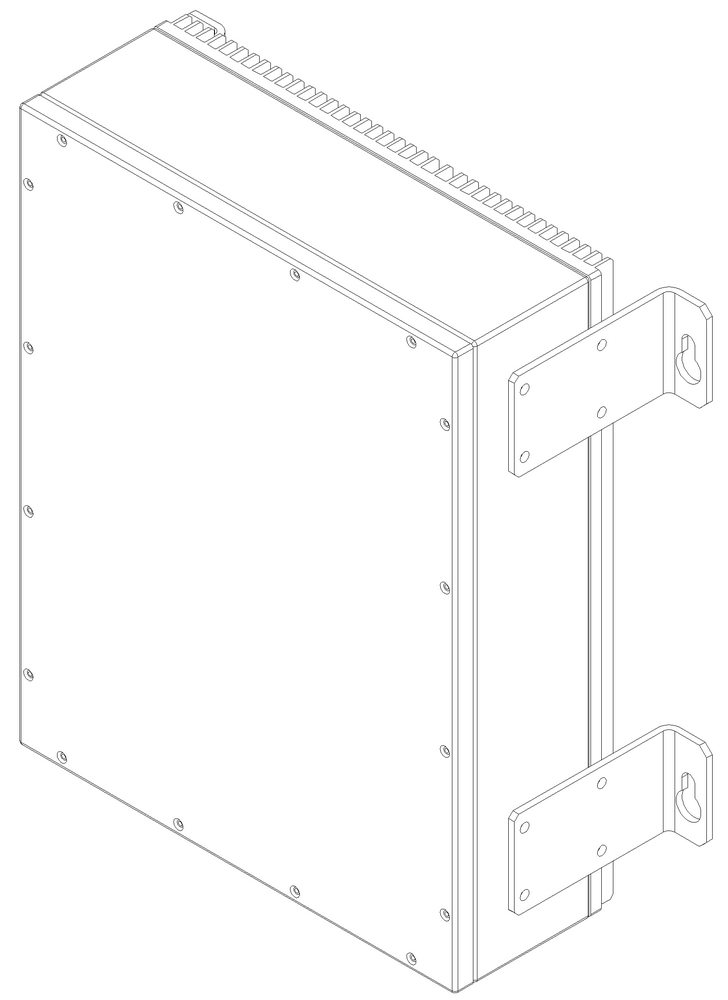

RIA091821-05

900MHz, 1800MHz and 2100MHz



Specification

Characteristics  Downlink Uplink
Frequency (MHz) 935 - 960 1805 - 1880 2110 - 2170 890 - 915  1710 - 1785 1920 – 1980
Gain 45~50 dB 45~50 dB
Pass Band Ripple +/- 2 dB  +/- 2 dB
Output Power -5 dBm + 15 dBm
Power Shut Down Level +5 dBm  +17~20 dBm
AGC Yes  Yes  Yes  Yes  Yes  Yes
Noise Figure ≤ 5 dB
VSWR  ≤1.5
Power Supply Mode AC220V, 50/60 Hz
Current <0.3A @ Full power output
Operation Temperature 0℃～+60℃
Casing class IP53
Weight 14 kg
Dimension  (H x W x D)  430mm x 311mm x 100mm
