MB09-300

900MHz

Specification

RX Characteristics  Specification
Frequency Range 885 – 915MHz
Max Gain over frequency and temperature  15±1 dB
Adjustable Gain Range  0~15dB
Flatness over Frequency  ≤±1dB
Noise Figure  ≤2.0dB, typical
Output 1dB Compression (max. Gain)  +12dBm
Output IP3 (max. Gain) +23dBm
Return loss(VSWR) 14dB (1.5:1)
TX Characteristics  Specification
Frequency Range 930 – 960MHz
Number of Carriers  4 or 8 carriers
Average Output Power  300W
Maximum Input Power 30-50Bm
Gain 0 - 15dB, Adjustable in 1dB step
IMD -60dBc for multi-carrier (typical）
Spectrum Masks and Spurious Emissions  ≤-13dBm/1MHz
Environmental Characteristics  Specification
Operating Temperature Range  -10˚C to +55˚C
Cold Start Temperature  -40˚C
Storage Temperature  -40˚C to +85˚C
IP Rating IP54
Humidity  5%～95%
EMC ETS 300 342-3

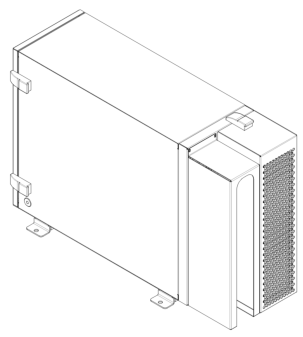

Mechanical Characteristics  Specification
Dimensions(H x W x D)  437mm x 236mm x 705mm
Weight 52kg
