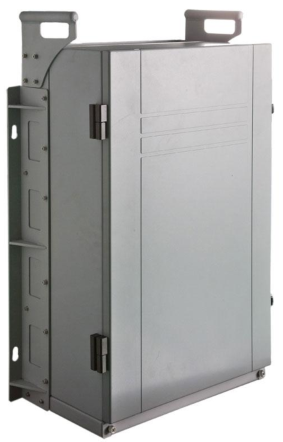

RIA091821-43

900MHz, 1800MHz and 2100MHz

Specification

Characteristics  Downlink Uplink
Frequency (MHz) 935 - 960 1805 - 1880 2110 - 2170 890 - 915  1710 - 1785 1920 – 1980
Gain 55dB ± 2  55dB ± 2
Adjustable Gain Range  30dB @ 1dB Step  30dB @ 1dB Step
Power O/P + 43dBm + 43dBm + 43dBm + 33dBm + 33dBm + 33dBm
ALC Yes  Yes  Yes  Yes  Yes  Yes
Noise Factor < 4 dB  < 4 dB
Input power(max)  0dBm 0dBm
VSWR  ≤1.5
Spurious Emission 3GPP compliant
Monitoring & Control  Local:：RS232; Remote：Modem
RF Interface N/F, 50Ω
Power Supply Mode AC220V, 50±5Hz;
Current <6A @ Full power output
Operation Temperature -20℃～+60℃
Casing class IP53
Weight 75kg
Dimension  (H x W x D)  797.8mm x 523mm x 269mm
