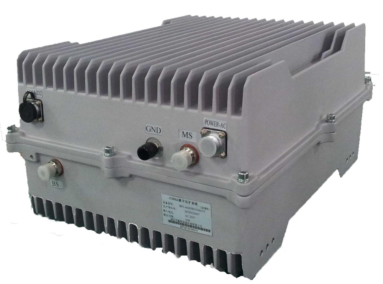

RR400-40

UHF 10W



Features

- Superior RF performance, high efficiency
- High Gain and Low Noise Figure
- Full Duplex mode, Tetra network
- Operating frequency can be customized
- Use PLL and ALC technology, high stability and reliability
- Easy installation, operation, and maintenance
- Flexible to any environment and low cost

Specification

Characteristics  Downlink Uplink
Frequency Range
(Can be customized according to customer requirements. Operation bandwidth is 5MH, and duplex bandwidth is 10MHz.)		 350MHz～520MHz 350MHz～520MHz
Output Power(Max)  40±2dBm  33±2dBm
Max Gain 90±3dB  85±3dB
Adjustable Gain Range 30dB @ 1dB step 30dB @ 1dB step
Noise Factor / ≤5dB @ full gain
Automatic Level Control(ALC) Output power variation < 2dB or be off when adding 10dB at max output power.
Control range≥30dB.
Pass Band Ripple ≤3dB
VSWR  ≤1.5
Spurious Emission 3GPP compliant
Monitoring & Control  Local:：RS232, Dry contact; Remote：GSM Modem
RF Interface N/F, 50Ω
Power Supply Mode AC100V~260V, 50±5Hz;
Power Consumption ≤220W
Operation Temperature -25℃～+55℃
Casing class IP65
Weight ≤25kg
Dimension  (W*L*H) 453mm*357mm*217mm
